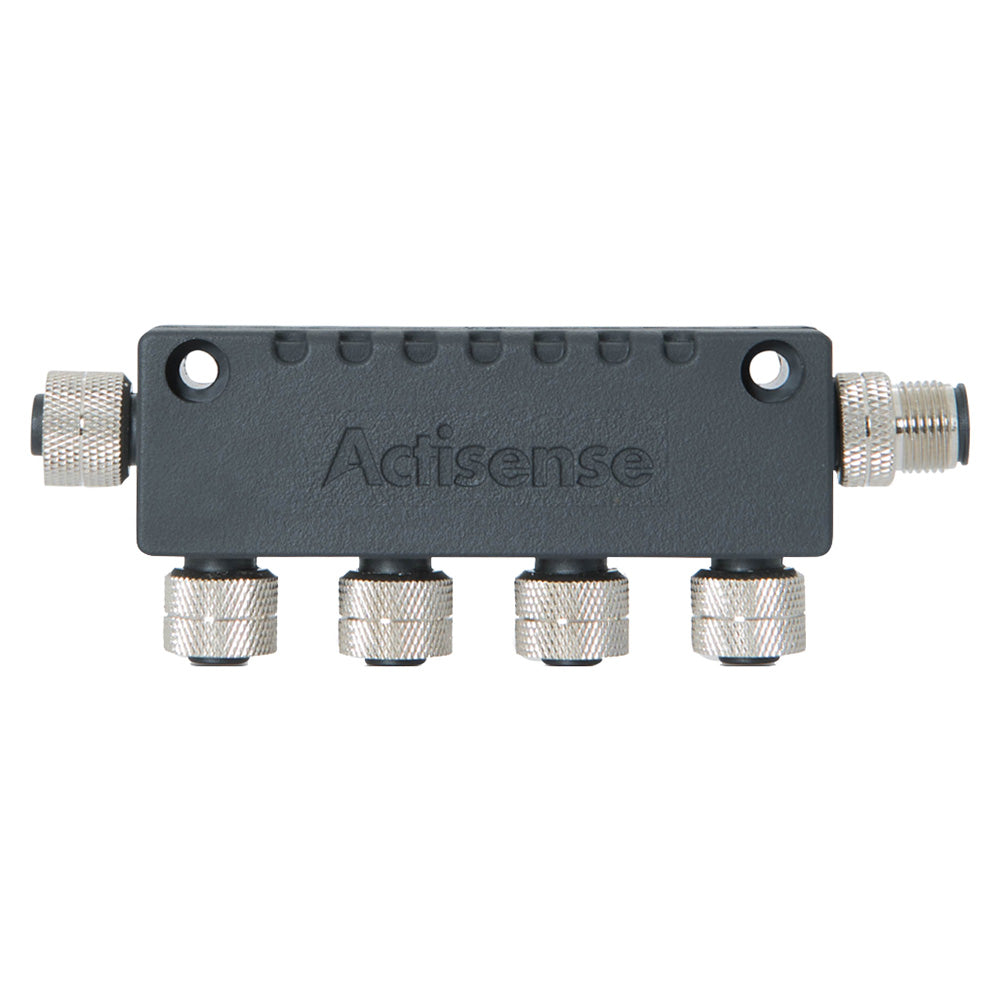

Actisense N2K Micro 4 Way T-Piece [A2K-4WT]

N2K Micro 4 Way T-Piece

The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.

The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Features:

• NMEA 2000 Approved
• RoHS Compliant

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60V DC

Mechanical

• Male Contact - Brass, gold plated
• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 -“A”- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, Black
• Housing - TPU, flame retardant to UL94V-0, Halogen Free
• Internal Housing Shield - Copper Foil
• Weight - 105g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -20°C to +70°C
• Storage Temperature - -40°C to +85°C

Specifications:

• Data Interface: NMEA 2000
• NMEA 2000 Connectors: Tee Connectors
• Box Dimensions: 2.00"H x 3.00"W x 5.00"L WT: 0.25 lbs
• UPC: 5060998710010
