Blue Sea 1147 Remote Control Panel w/(2)2145 & (1)2146 Remote Control Contura Switch [1147]

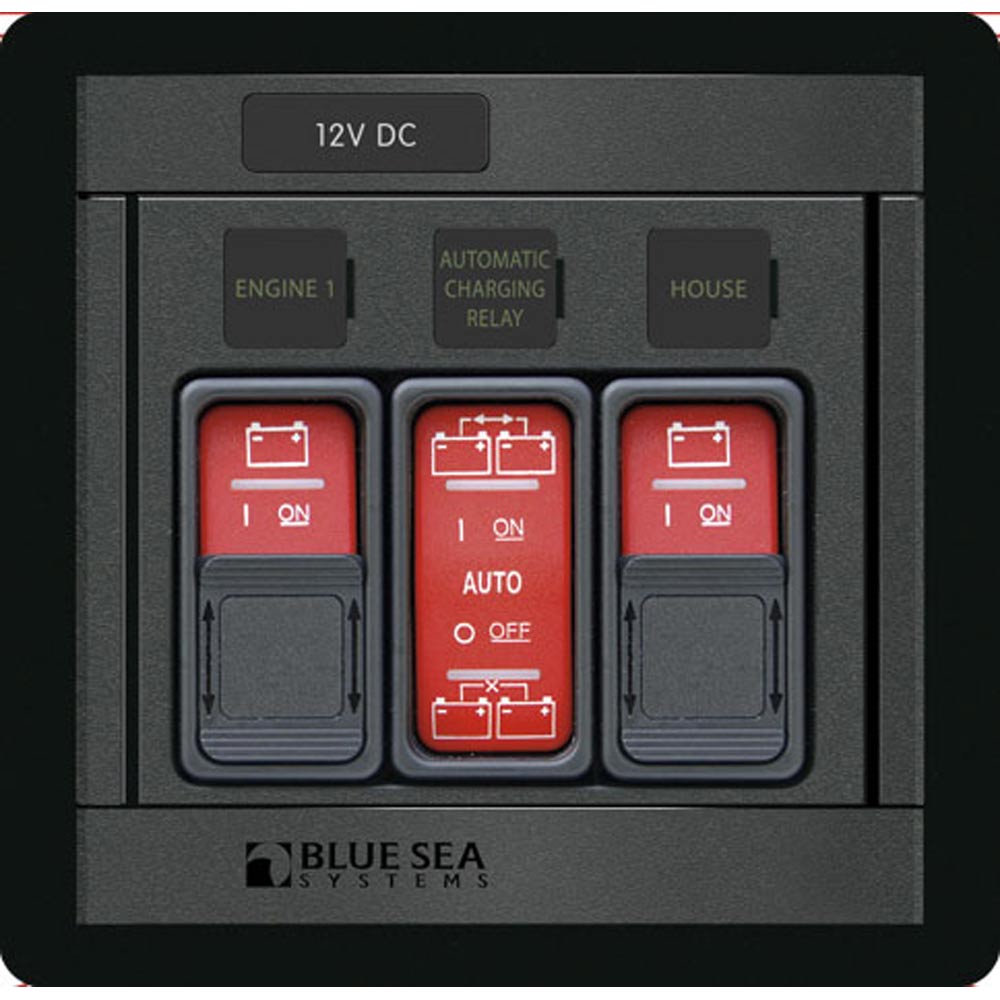

Remote Control Panel w/(2)2145 & (1)2146 Remote Control Contura Switch

Features:

• Lockout slides reduce the risk of accidental switching

• For use with two ML-Series Switches and one ML-Series Automatic Charging Relay

• Includes labels illustrated only

• Over 500 individual labels available

• Positions:3

• Nominal Voltage:12V DC / 24V DC

• Height:4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth:2.00" (50.8mm)

• Weight:0.83lb (0.38kg)

  Included:
  (2) - 2145 - SPDT Remote Control Contura Switch - (ON)-OFF-(ON)
  (1) - 2146 - SPDT Remote Control Contura Switch - ON-OFF-ON

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • AC/DC: DC
  • Box Dimensions: 6"H x 6"W x 9"L WT: 0.85 lbs
  • UPC: 632085011475

  Quick Guide (pdf)
  Owner's Manual (pdf)
