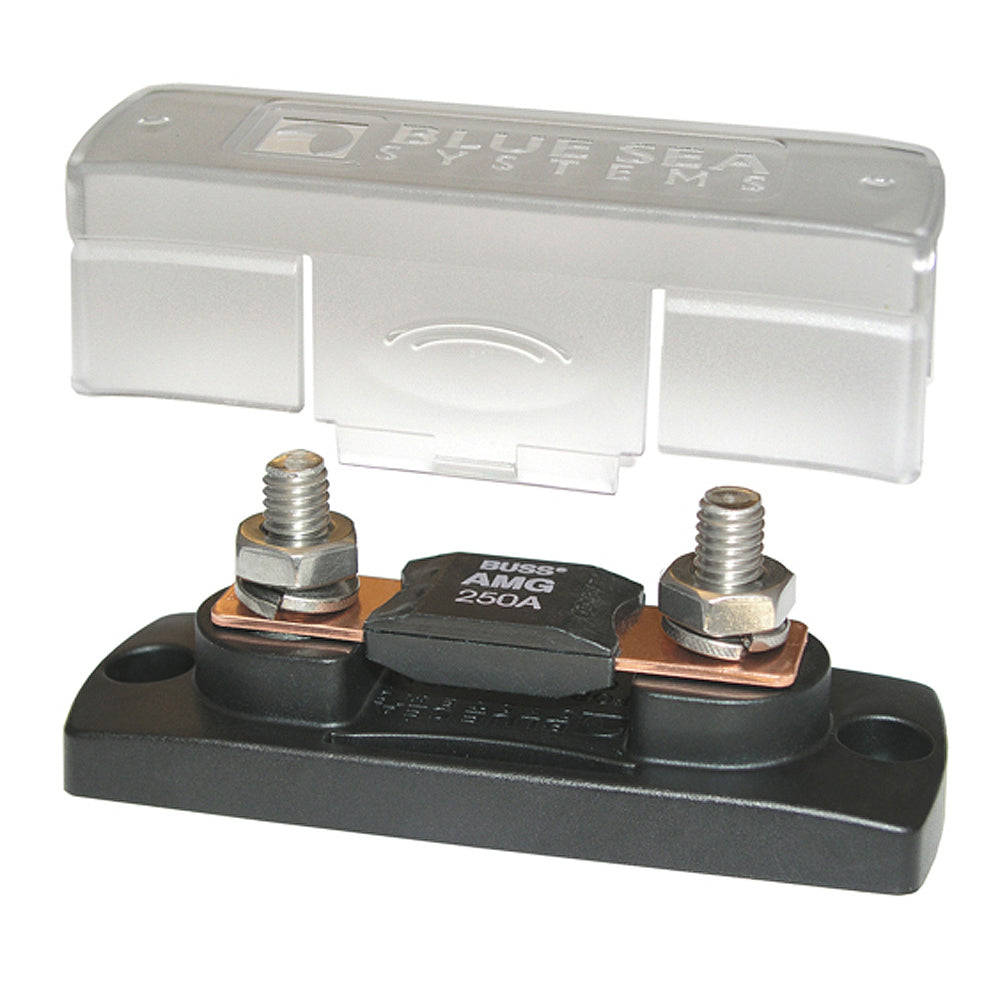

Blue Sea 5001 Fuse Block MEGA 100-300A w/Cover [5001]

5001 Fuse Block MEGA 100-300A with Cover

Features:

• The most economical system for 100-300 Ampere fusing
• Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow wire access in any direction
• For use on systems up to 32V DC
• 5/16" stud terminals accept 5/16" (M8) Ring Terminals, 14AWG to 2/0 AWG Wire
• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Fuse Type: MEGA/AMG
• Type: Fuse Blocks
• Box Dimensions: 2"H x 4"W x 8"L WT: 0.4 lbs
• UPC: 632085050016
