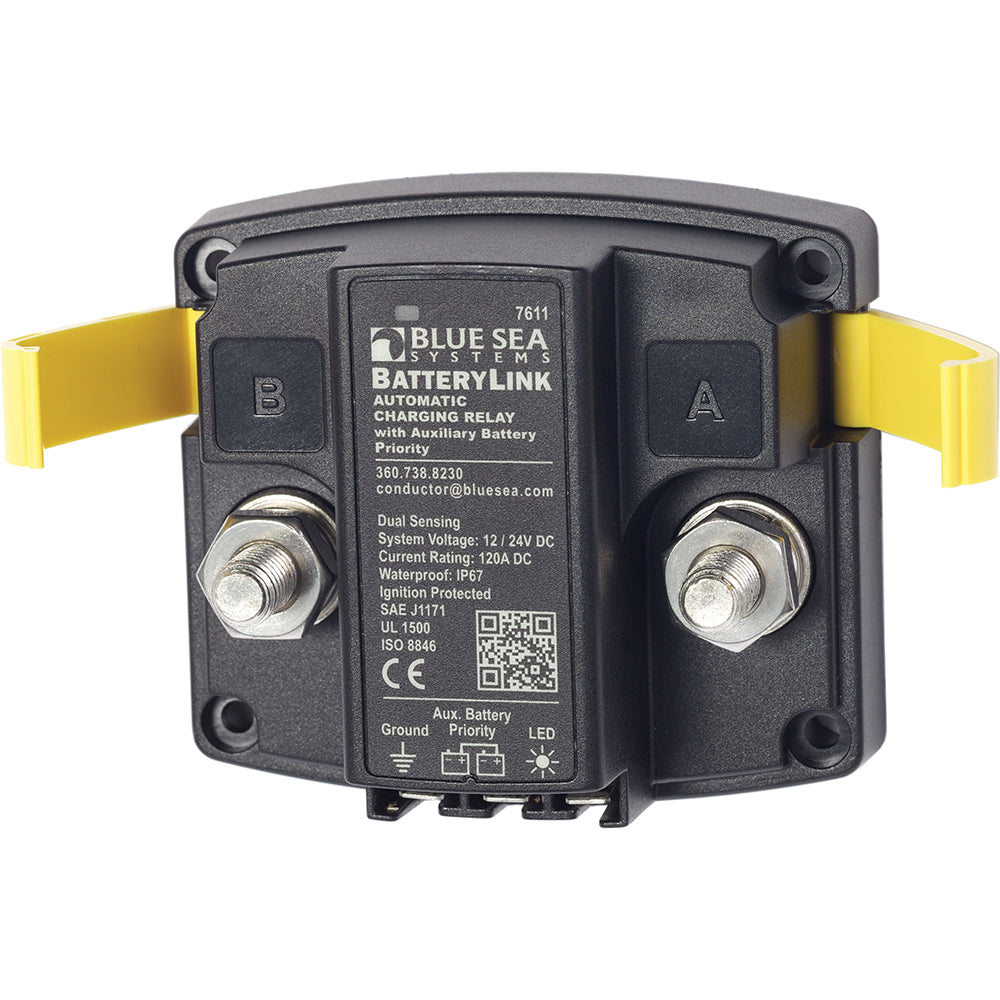

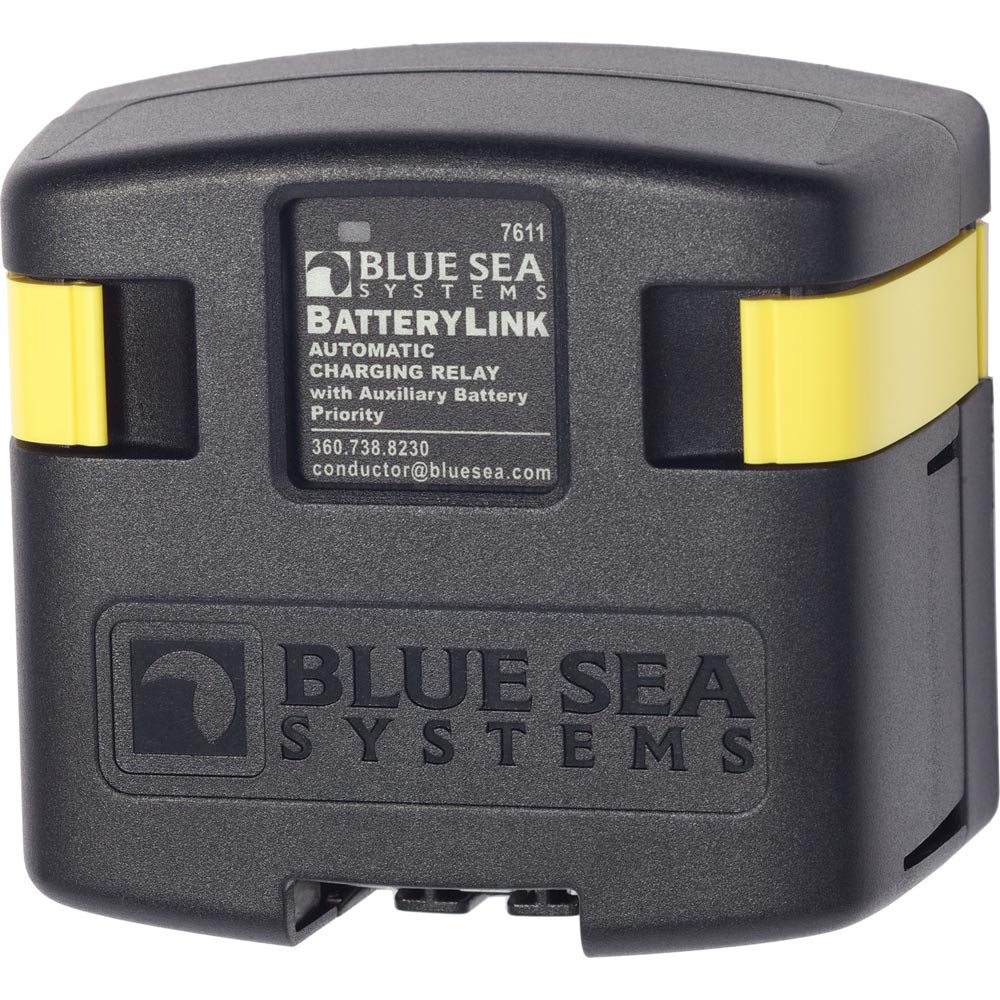

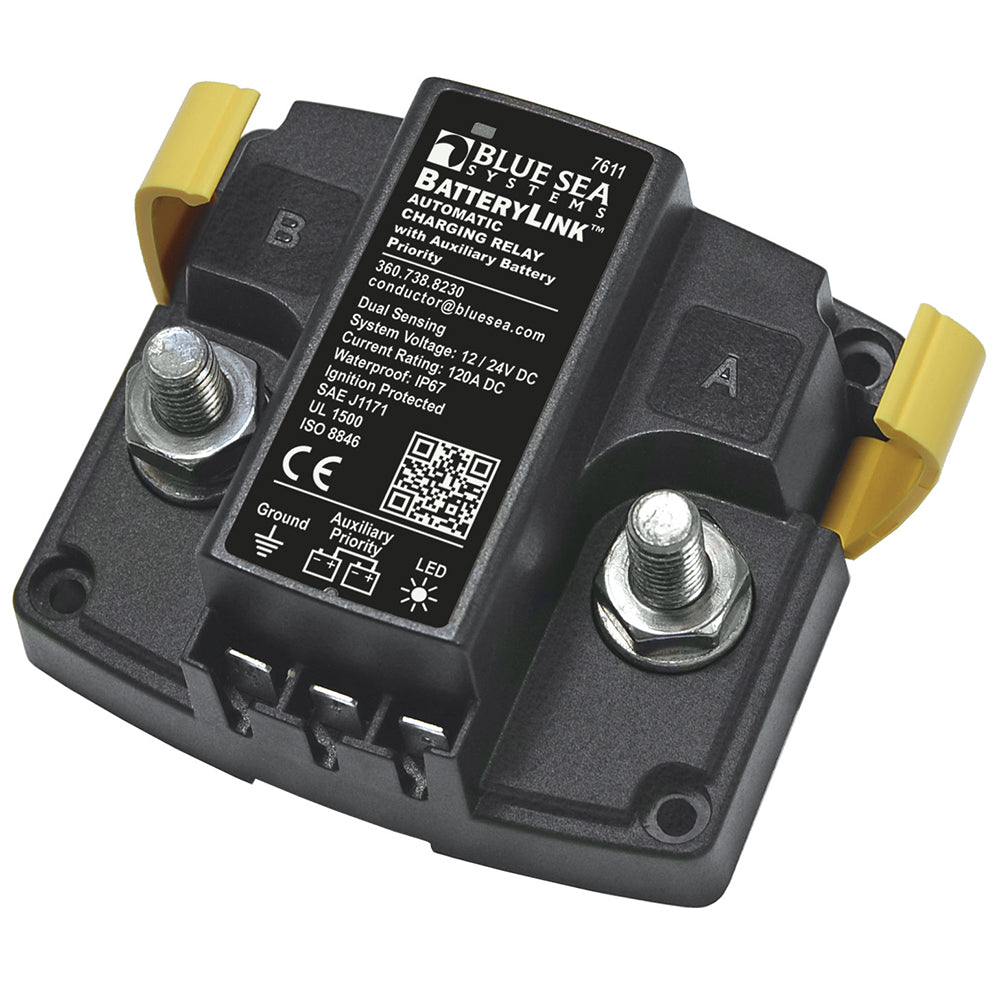

Blue Sea 7611 DC BatteryLink Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging [7611]
Customer Reviews
Sale price:
$138.95
Regular price:
$145.99
Save 5%
(-5%)
FREE Standard Shipping $149+*
Under $149: rates calculated at checkout
7-day returns*
*Continental US; oversize/freight charges may apply.
Key specs & documentation
- Nominal Voltage
- 12/24 Volts DC
- Continuous Amperage
- 120a
- Intermittent Rating
- 5 min.: 210 Amps
- Continuous Rating
- 120 Amps
Product details
Description
7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging
Features:
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4" x .032" male quick connect terminals for ground and optional features
Specifications:
- Intermittent Rating: 5 min.: 210 Amps
- Continuous Rating: 120 Amps
- Nominal Voltage: 12/24 Volts DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Continuous Amperage: 120a
- Box Dimensions: 4"H x 7"W x 9"L WT: 1.25 lbs
- UPC: 632085076115
Owner's Manual (pdf)
