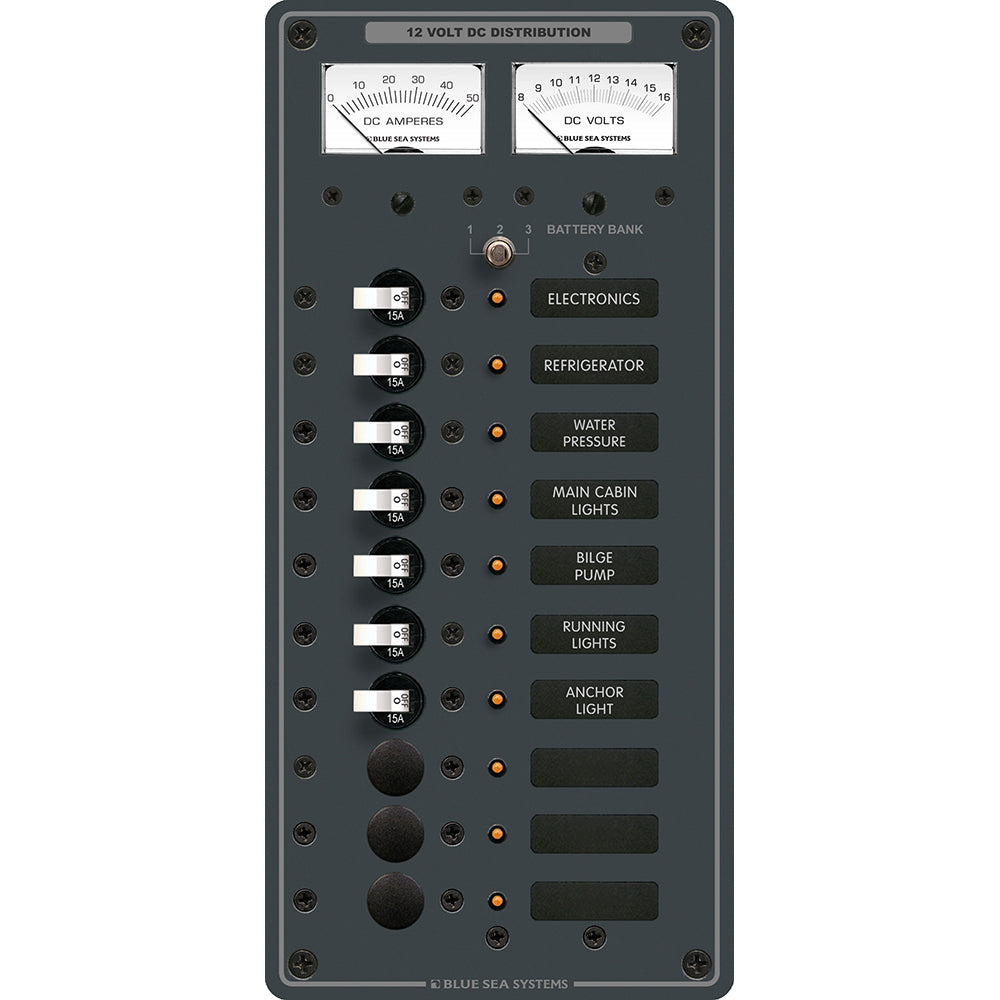

Blue Sea 8082 DC 10 Position Toggle Branch Circuit Breaker Panel [8082]

Sale price $415.49 Regular price $570.99

8082 DC 10 Position Toggle Branch Circuit Breaker Panel

Features:

  • All positive, negative and grounding buses installed, fully pre-wired
  • Includes set of 30 common DC labels
  • Label backlighting pre-installed
  • All LEDs installed
  • Detailed installation instructions and cutout template
  • 8028, 8-16 Volt DC Micro Voltmeter
  • 8041, 0-50 Amp DC Micro Ammeter
  • Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
  • 7 15A Single Pole circuit Breakers

Specifications:

  • Positions: 10
  • Nominal Voltage: 12v DC
  • Maximum Amperage: 50A
  • Height: 11.25"
  • Width: 5.25"
  • Depth: 2.5"
  • Weight: 3.35 lbs

Included:

  • (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
  • (1) 8030 Basic DC Panel Label Set - 30 Labels
  • (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
  • (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Max Breaker Quantity: 10
  • AC/DC: DC
  • Voltage: 12v
  • Box Dimensions: 5"H x 10"W x 13"L WT: 3.3 lbs
  • UPC: 632085080822

Quick Guide (pdf)
Owner's Manual (pdf)
