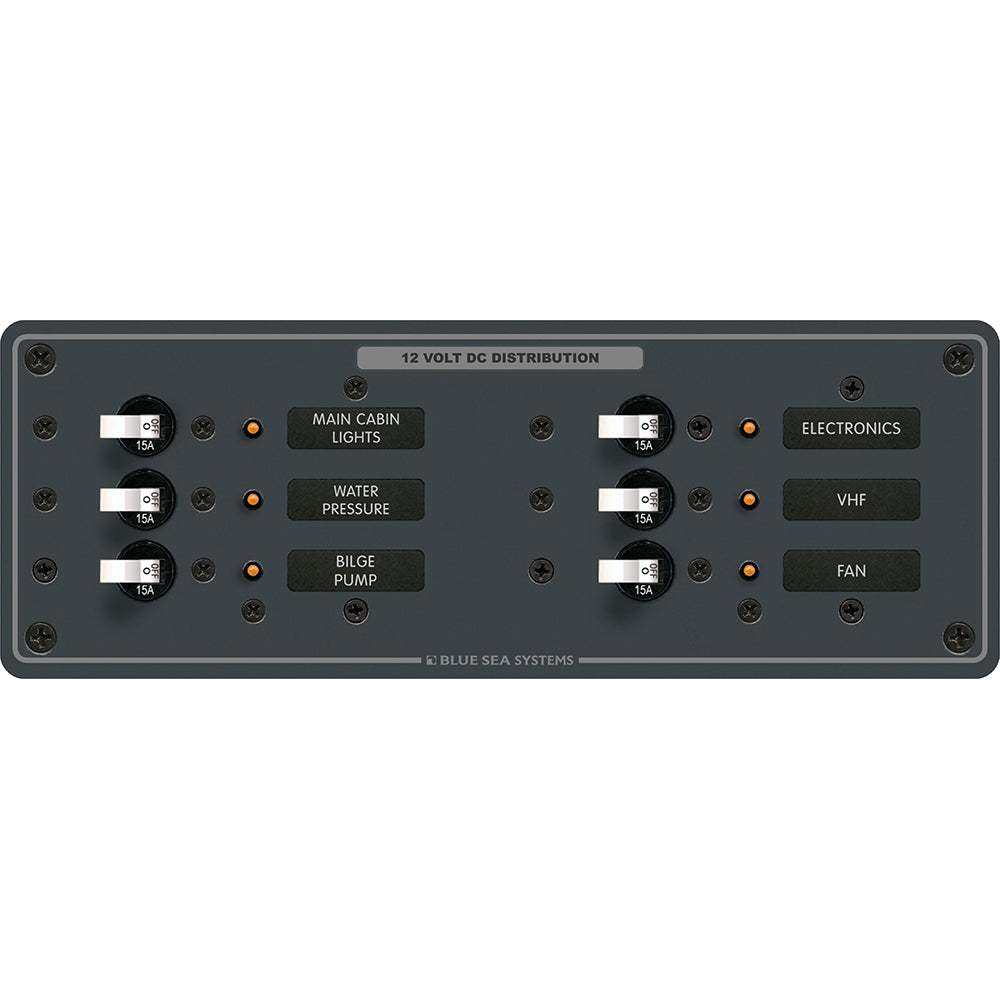

Blue Sea 8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches [8096]

8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 6
• Nominal Voltage: 12v/24v
• Maximum Amperage: 100A per bus
• Height: 3.75"
• Width: 10.5"
• Depth: 2.5"

Included:

• (6) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 6
• AC/DC: DC
• Voltage: 12/24v
• Box Dimensions: 5"H x 9"W x 12"L WT: 2.3 lbs
• UPC: 632085080969
