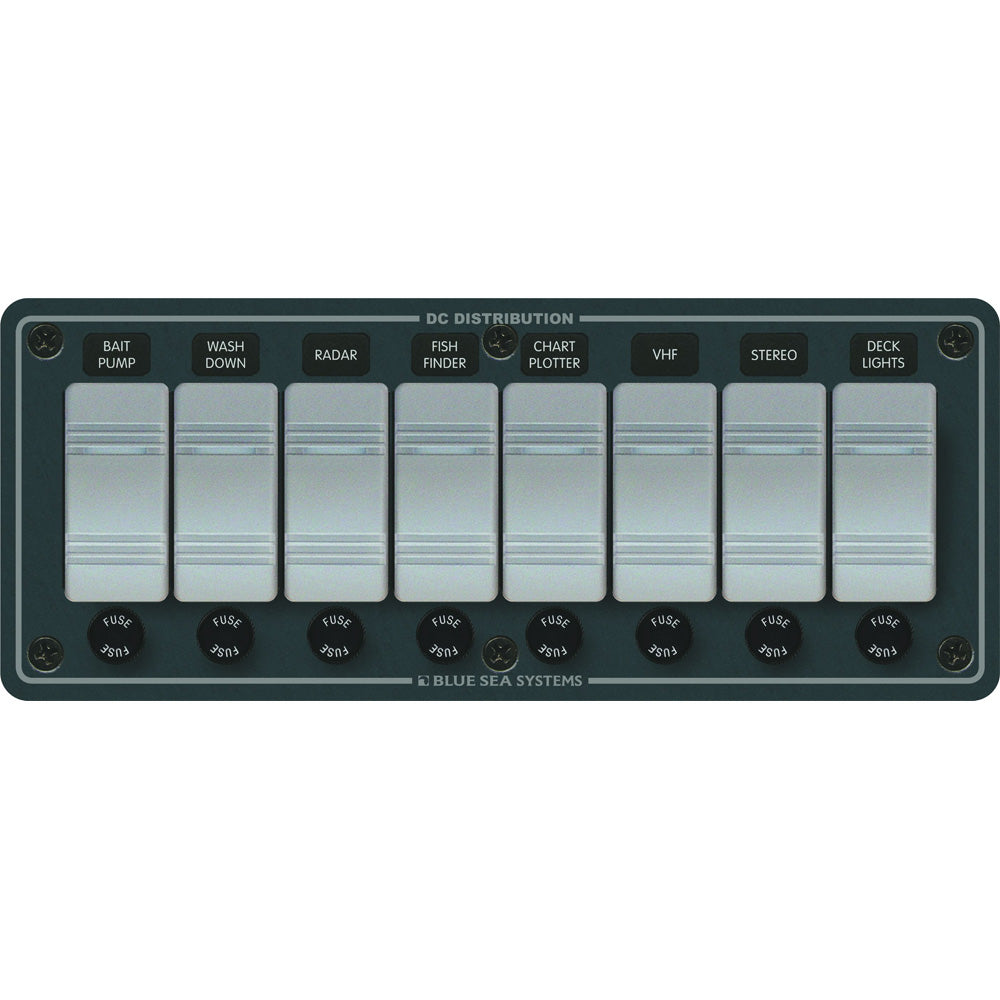

Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261]

8261 Waterproof Panel 8 Position - Slate Grey

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
• Designed for flybridge and open cockpit applications
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switches
• Watertight mounting gasket included
• Countersunk mounting holes throughout
• Two-part polyurethane slate gray finish
• Industry standard height and width
• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant
• Positions: 8
• Nominal Voltage: 12v / 24v
• Panel Cumulative Rating: 90A
• Switch Rating: 20A @ 12v DC / 15A @ 24v DC
• Height: 3.75"
• Width: 9.37"
• Depth: 3"

Included:

• (8) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8214 Black 60 Label Set
• (8) 8230 Contura Switch SPST Gray - Off-On

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Waterproof: Resistant
• AC/DC: DC
• Max Breaker Quantity: 8
• Voltage: 12/24v
• Box Dimensions: 7"H x 10"W x 10"L WT: 5.6 lbs
• UPC: 632085082611
