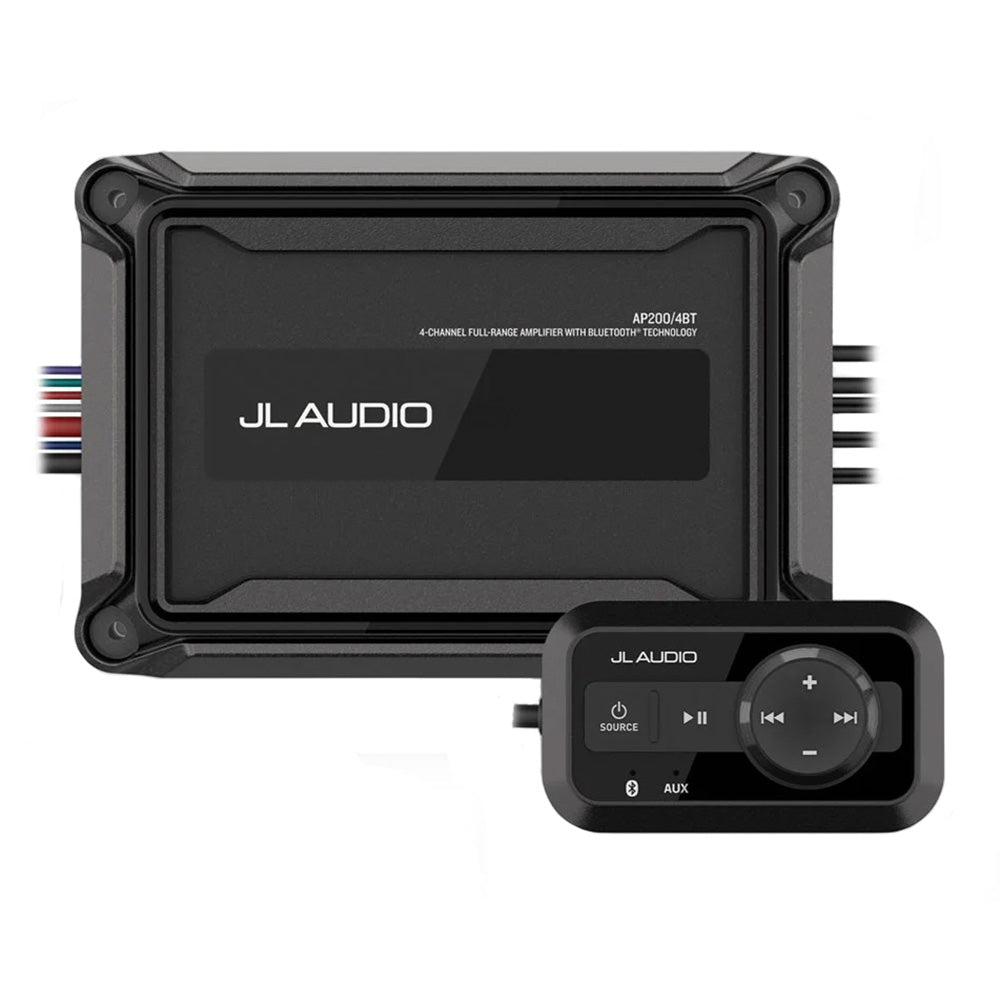

JL Audio AP 4 Channel Compact Marine Amplifier w/Bluetooth - AP200/4BT [010-03431-00]

AP 4 Channel Compact Marine Amplifier with Bluetooth® - AP200/4BT

POWER THE MOMENT

With this tough and ultracompact 4-channel amplifier featuring Bluetooth® technology, you can enjoy every note from every part of your boat.

• Efficient Class-D Design
• Stream Audio with Bluetooth Technology
• Includes Wired Remote
• Ignition Protected and IP67-Rated (Excluding Cables)
• Compact Build

Class-D Amplifier Technology

The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.

Stream On The Go

This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface-, or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski, or overland vehicle.

Rugged Design

The included remote is IPX7-rated, and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

Specifications

General

• Channels: 4
• Physical Height: 1.85"
• Physical Width: 7.28"
• Physical Depth: 4.9"
• Operating Voltage: 9-16 VDC
• Water and Dust Rating: IP67

Audio

• Amplifier Class: Class D
• RMS Power @ 4 OHM: 40 W x 4/100 W x 2 (Bridged)
• RMS Power @ 2 OHM: 4 Channel: 50 W x 4
• Frequency Response: 20hz - 20kHz
• Input Sensitivity: Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
• Input Impedance: 11 kΩ (High) 20 kΩ (Low)
• Current Consumption (idle): 700-750mA
• Fuse Rating: 35A
• Recommended Fuse Types: AFS, AGU, or MaxiFuse™
• Min. Copper Power/Ground Wire: 4 awg Wire
• Protection Circuits: Input under/over voltage, Over temperature, Output short circuit
