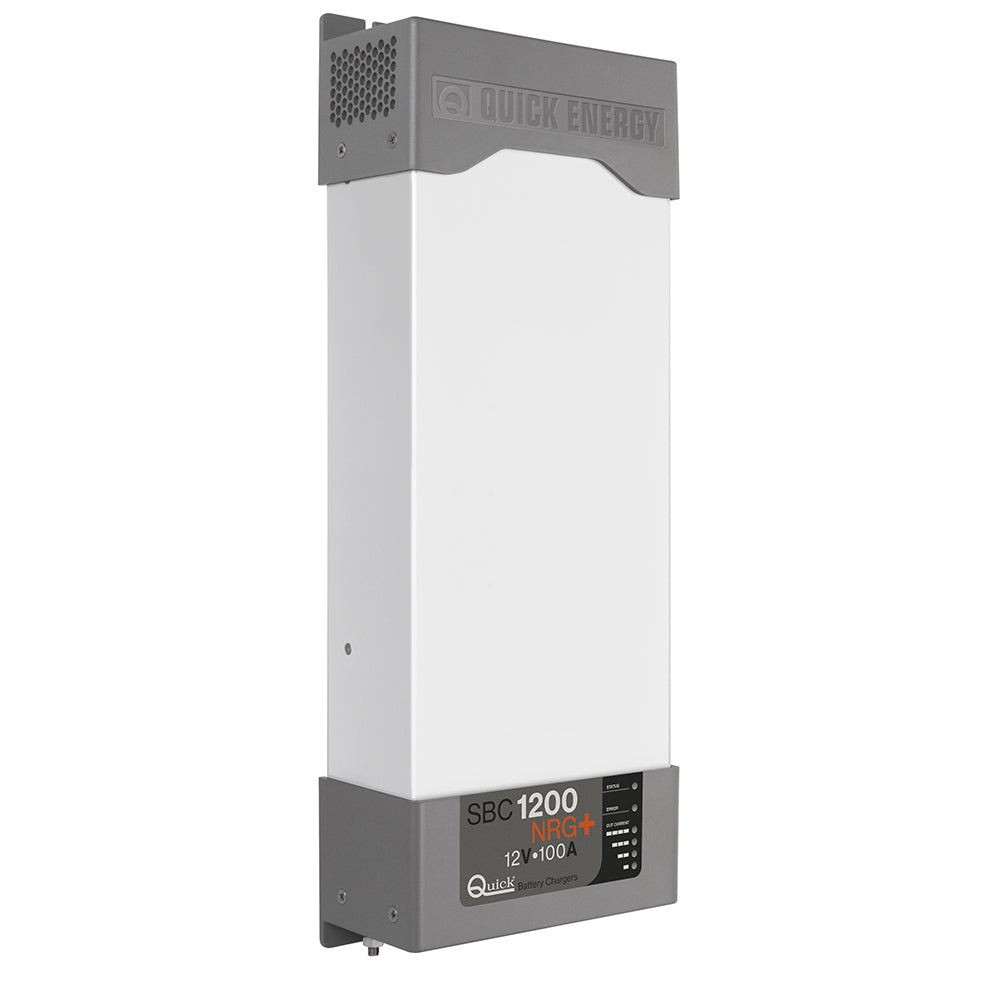

Quick SBC 1200 NRG+ Series Battery Charger - 12V - 100A - 3-Bank [FBNRP1200FR0A00]

SBC 1200 NRG+ Series Battery Charger - 12V - 100A - 3-Bank

The long experience we have in the nautical field has given us the ability to evolve the range of SBC battery chargers, now called NRG+, with superior performance to those currently on the market.

The advantages which the SBC NRG+ battery chargers offer are:

• Three-stage IUoU battery charging
• High efficiency
• Multiple outputs to charge more groups of batteries (MOSFET charge separator inside)
• Differentiated charging for open or sealed liquid electrolyte, Gel, AGM, Optima®, Li-Ion Batteries
• Integrated output fuses inside the battery chargers (for each output)
• Capacity of supplying full power with low AC mains voltage
• Possibility to connect in parallel up to three battery chargers of the same model for current sharing by means of digital control
• Low residual fluctuation on output
• Universal AC supply input 264 ÷ 83 Vac, 45 ÷ 66 Hz
• Power factor equal to 1
• Compatible with the generators
• Short circuit, overloading, output overvoltage and overheating protection
• Can work in a wide range of ambient temperatures
• Variable speed for the cooling fan
• User interface via LEDs that signal the status, errors and the output current
• Backlit LCD terminal with multi-language interface (optional)
• Charge is compensated according to the temperature of the batteries (1 sensor supplied; more sensors optional)

Specifications:

• Charger Input - Voltage: 120/230v
• Portable: No
• Charging Banks: 3
• Charger Output Voltage: 12v
• Charger Output - Amps: 100a
• Box Dimensions: 6"H x 13"W x 23"L WT: 12.9 lbs
• UPC: 8057090147834
