RAM Mount Mari-Rivet Aluminum Pop Rivets - 4 Pack [RAM-MARI-RIVET-4U]

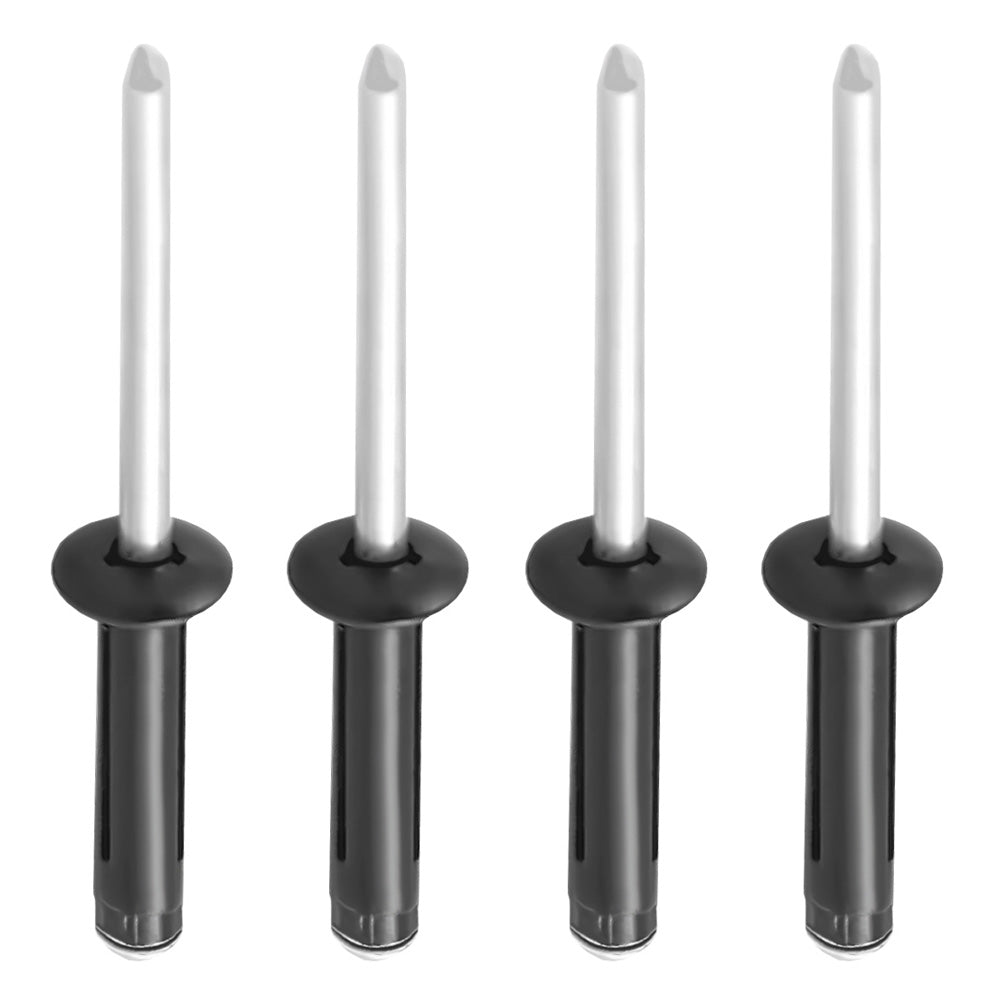

RAM-Mari-Rivet™ Aluminum Pop Rivets (4 QTY)

The RAM-MARI-RIVET-4U consists of (4 qty) aluminum 1/8" pop rivets for blind hole mounting .

Grip Thickness:

1/16" to 1/4"

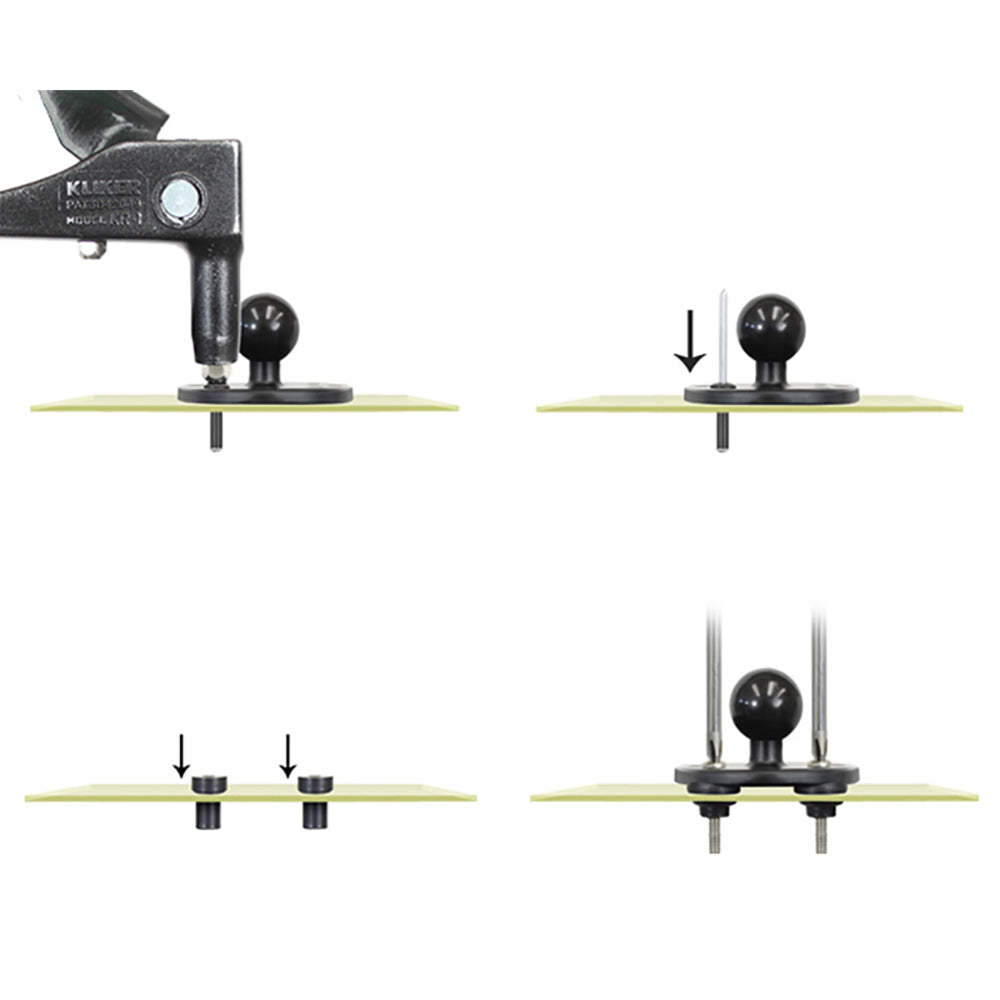

Installation Instructions:

1. Locate RAM base to desired mounting location, drill holes with 7/32" drill.

2. Place Mari-Rivet™ body all the way through RAM base and pre-drilled 7/32" holes until flange is firmly secured against mounting surface.

3. Insert rivet gun over mandrel head.

4. Clamp rivet gun; this will initiate the jaws to retract, extracting the mandrel, which pulls the mandrel head into the rivet body setting the rivet. At a predetermined tensile load, the mandrel breaks from its head and is discarded.

Weight:

0.04 lbs.
