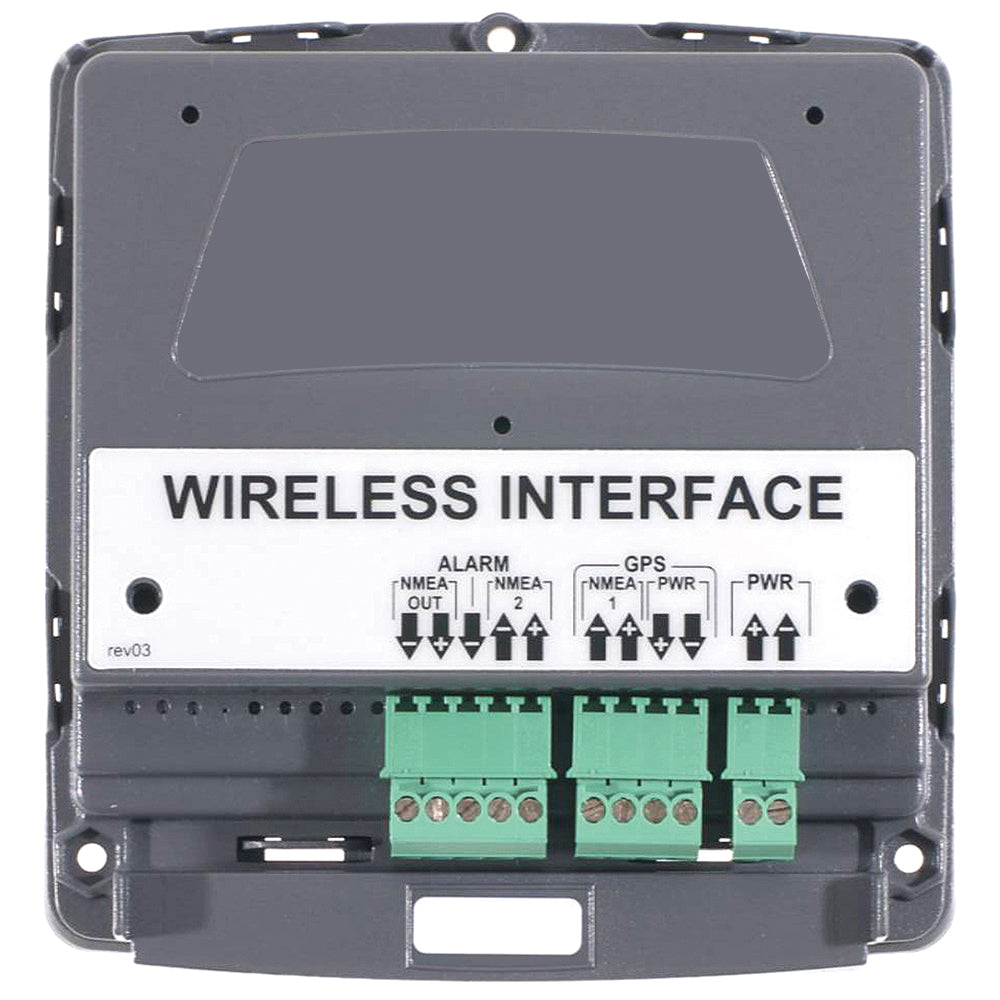

Raymarine Wireless Interface T122 [T122]

T122 Micronet Wireless NMEA Interface

Key Features

• Only 135g (0.3lbs)

• 9 - 24 V external power supply

• NMEA 0183 Ver 2.3

• 2 inputs and 1 output

• External Alarm connector

Product Description
This interface enables sailors to integrate other marine electronics into any of the Micronet instrument range. Compatible with instruments using the NMEA language, the Wireless NMEA Interface (2 inputs/1 output) collects data from autopilots, GPS, chartplotters, PDAs and other on board instruments and transmits it wirelessly to the Micronet displays. Plugged into an on board PC, Micronet can send and receive information so that navigation and tactical software can be displayed anywhere on deck.

The Wireless NMEA Interface may be used with PC software to create custom pages on the T110 Micronet Digital Display using Proprietary NMEA Sentences.

Specifications:

• Type: Misc
• Box Dimensions: 4"H x 6"W x 9"L WT: 0.9 lbs
• UPC: 723193702673

Quick Guide (pdf)
Owner's Manual (pdf)
