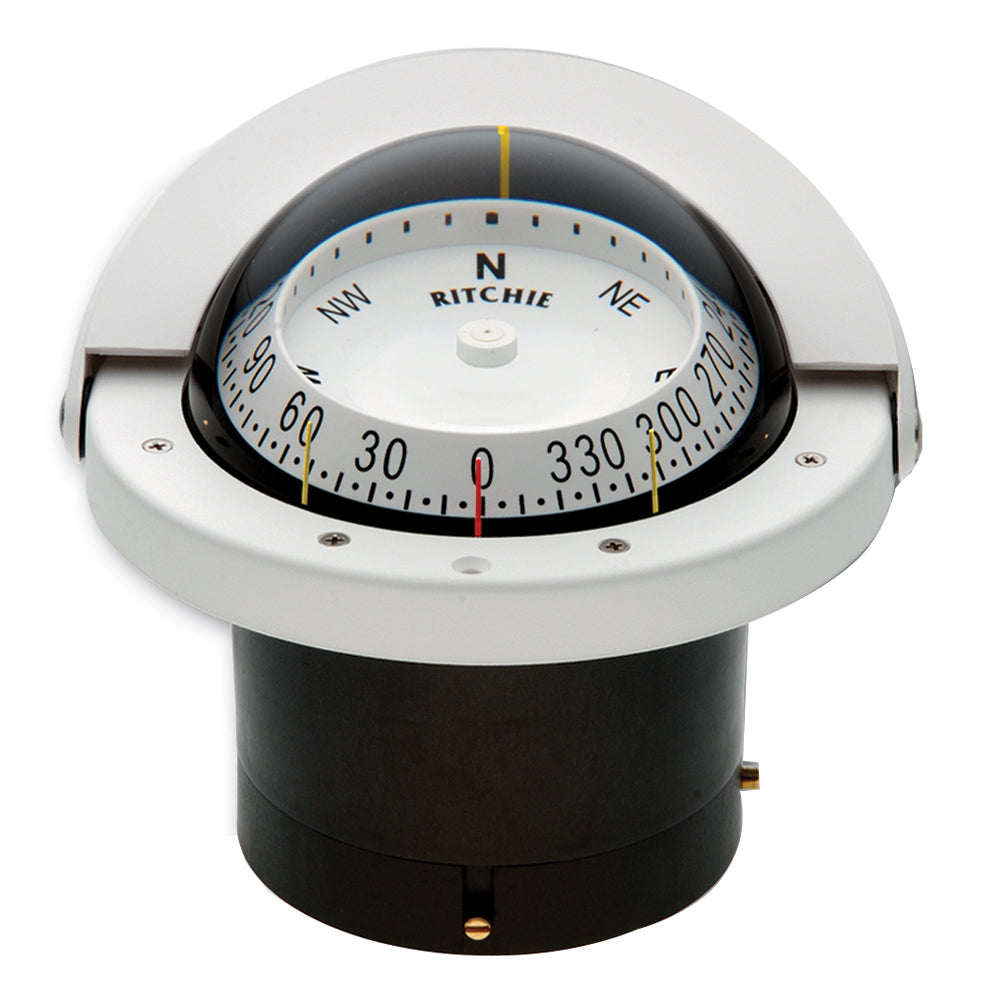

Navigator Compass Features:
- 4 1/2" CombiDamp Dial with Large Numerals

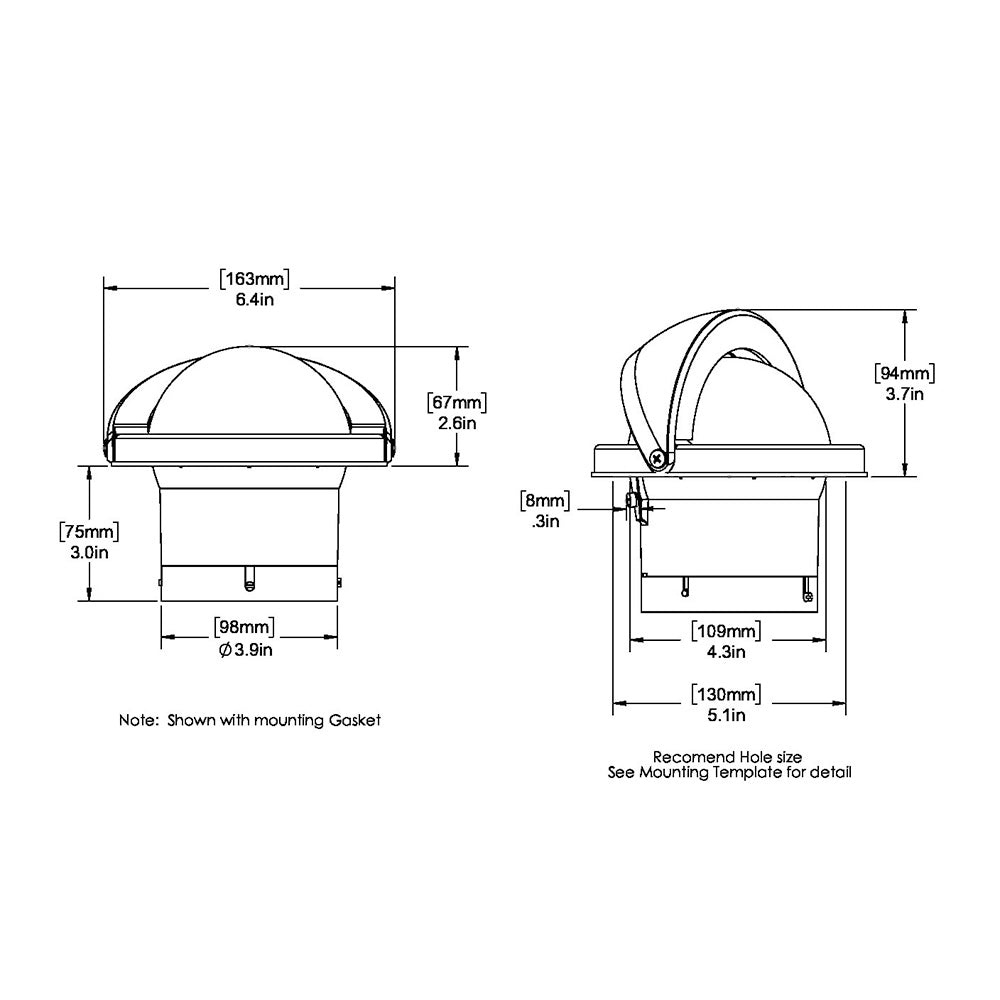

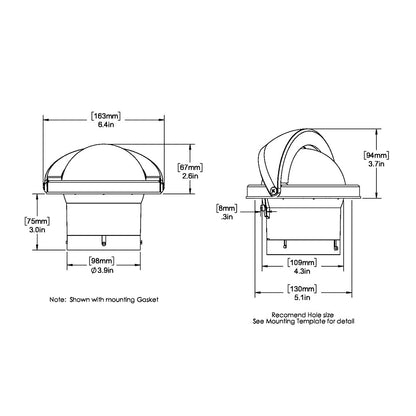

- Easily Installed, Fits 4.75" (12.07 cm) Mounting Hole.
- Exclusive Built-in Green NiteVu Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- Movable Sun Shield
- 45 Degree Lubber Lines
- High Temperature Construction for Extended Operating Range
- Custom Fitted Protective Covers Available
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2 lbs 10 oz (1.19 kg)
For Navigators built before 1986 please see the service manual page 6-12 or contact Ritchie for replacement lighting.
12 volt lighting standard - 24 & 32 volt lighting options are available.
- Mounting Style: Flush
- Read: Front
- Backlight: Yes
- Lubber Lines: Yes
- Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs
- UPC: 010342150370
