Scanstrut DS6-P Vertical Cable Seal [DS6-P]

DS6-P Vertical Cable Seal

Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.

Features:

• Watertight installation - 100% waterproof with an IP68 rating
• Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation.
•  Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and the outer dome provides an additional water shield.

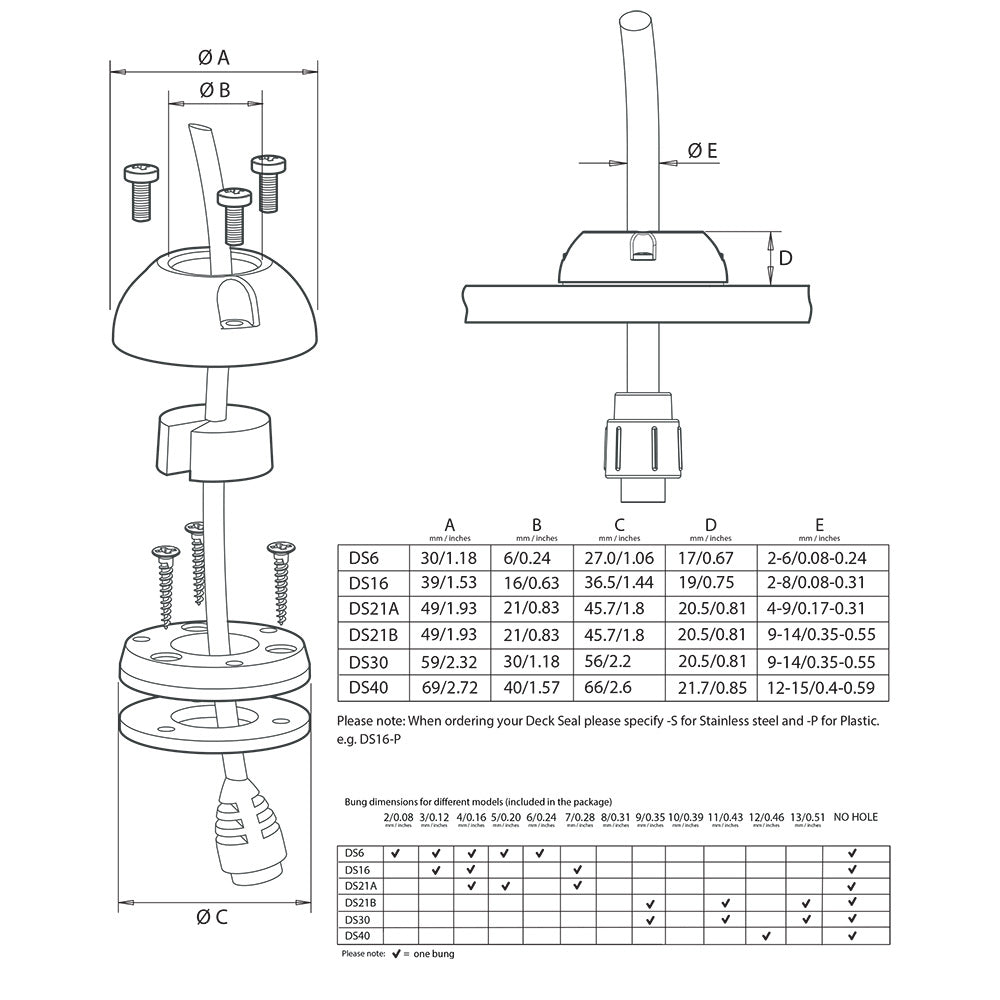

Technical Specifications:

• Fits cable size (diameter) - .08" to .24" (2 - 6 mm)
• Fits connector size up to .24" (6 mm) in diameter
• Height - .67" (17 mm)
• Color - Grey
• Orientation - Vertical
• Material - ASA Plastic

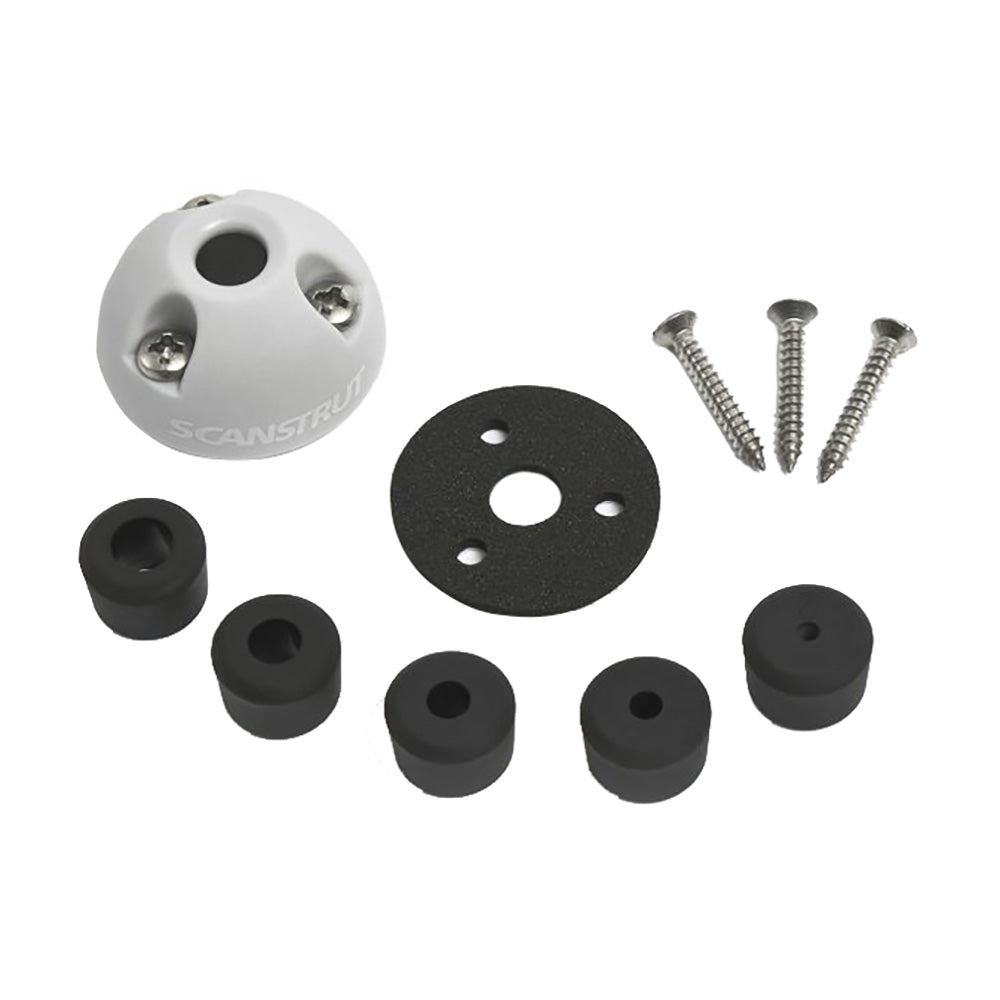

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Type: Deck Seal
• Box Dimensions: 1"H x 4"W x 9"L WT: 0.14 lbs
• UPC: 5060114794924
