Scanstrut Starlink Compatible Horizontal Cable Seal - Grey [DS-HSL-01]

Starlink® Compatible Horizontal Cable Seal - Grey

Designed for a range of Starlink®, NMEA, and RJ45 cable and connector diameters, the DS-HSL-01 Horizontal Cable Seal provides a clean, reliable cable routing solution for rooftop installations.

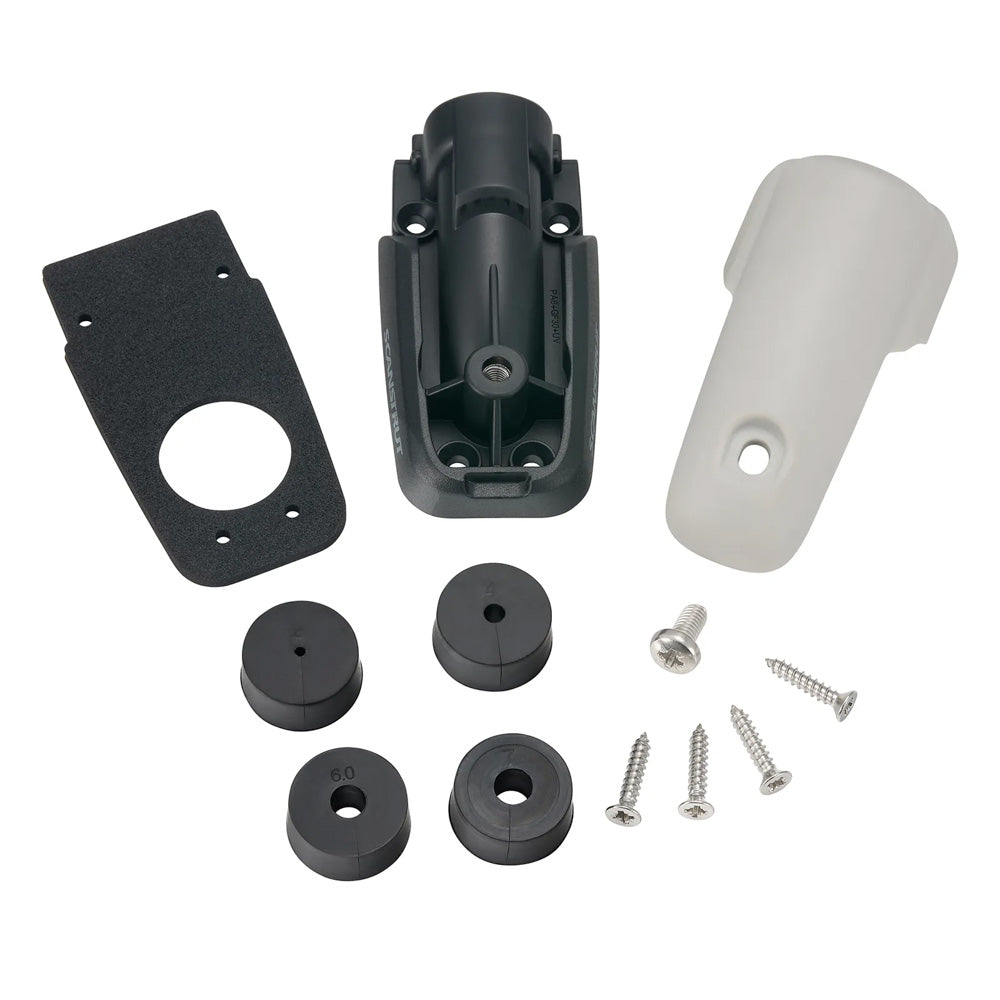

The supplied split pre-drilled bungs allow cables with connectors already attached to pass through the seal, removing the need to cut and re-terminate connectors during installation. Multiple bung sizes and a self-drill option allow installers to customize the fit while maintaining a watertight seal easily.

Based on our most popular horizontal cable seal design, the low-profile construction is impact-resistant and offers additional protection against water ingress. The horizontal cable entry keeps the cable exit as close as possible to the mounting surface, creating a neat, professional installation.

Suitable for cables ranging from 2-8 mm (0.07”-0.31”), the DS-HSL-01 is ideal not only for Starlink installations but also for solar panels, light bars, lighting, and other rooftop electronics.

Marine Grade Materials

Manufactured from premium UV-stable, hard-wearing materials, the DS-HSL-01 is built for long-term outdoor performance. Rated IP68, it delivers a guaranteed 100% watertight seal in demanding marine and outdoor environments.

Easy Installation

Captive nuts ensure a fast and reliable installation while allowing repeat fitting if required. The easy-fit cable routing system helps reduce installation time and delivers a clean, professional finish.

Specifications:

• Material: High Impact Plastic
• Height: 29mm (1.14”)
• Length: 88mm (3.46”)
• Color: Grey
• Cable Compatibility: Starlink Performance (Gen 3), Starlink Enterprise (Gen 3), Standard (Gen 3), Mini, NMEA cables, RJ45 cables
• Max Connector size: 16mm (0.62”)
• Bungs: 2-3mm (0.07-0.11”) / 4-5mm (0.15-0.19”) / 6-7mm (0.23-0.28”) / 7-8mm (0.28-0.31”) / 1 x Self Drill

Specifications:

• Type: Electric
• Box Dimensions: 2"H x 4"W x 9"L WT: 0.26 lbs
• UPC: 5061093900320
