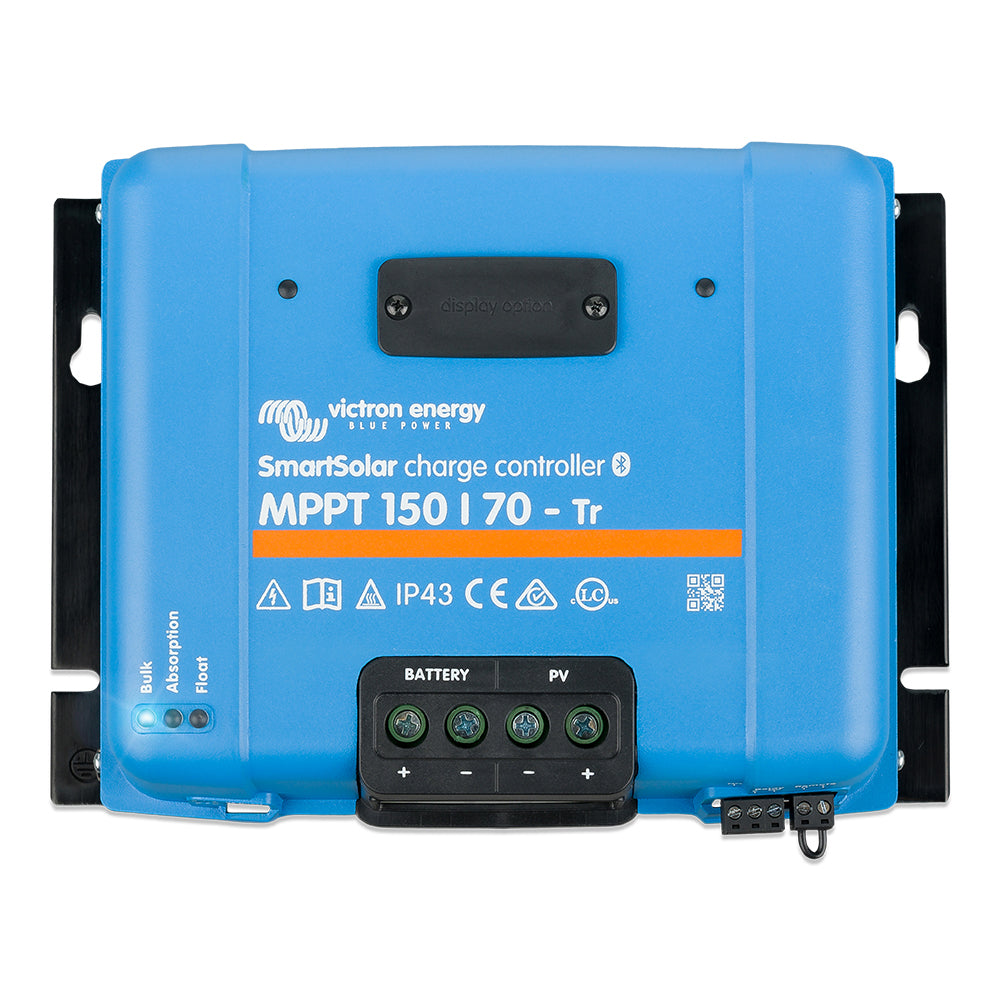

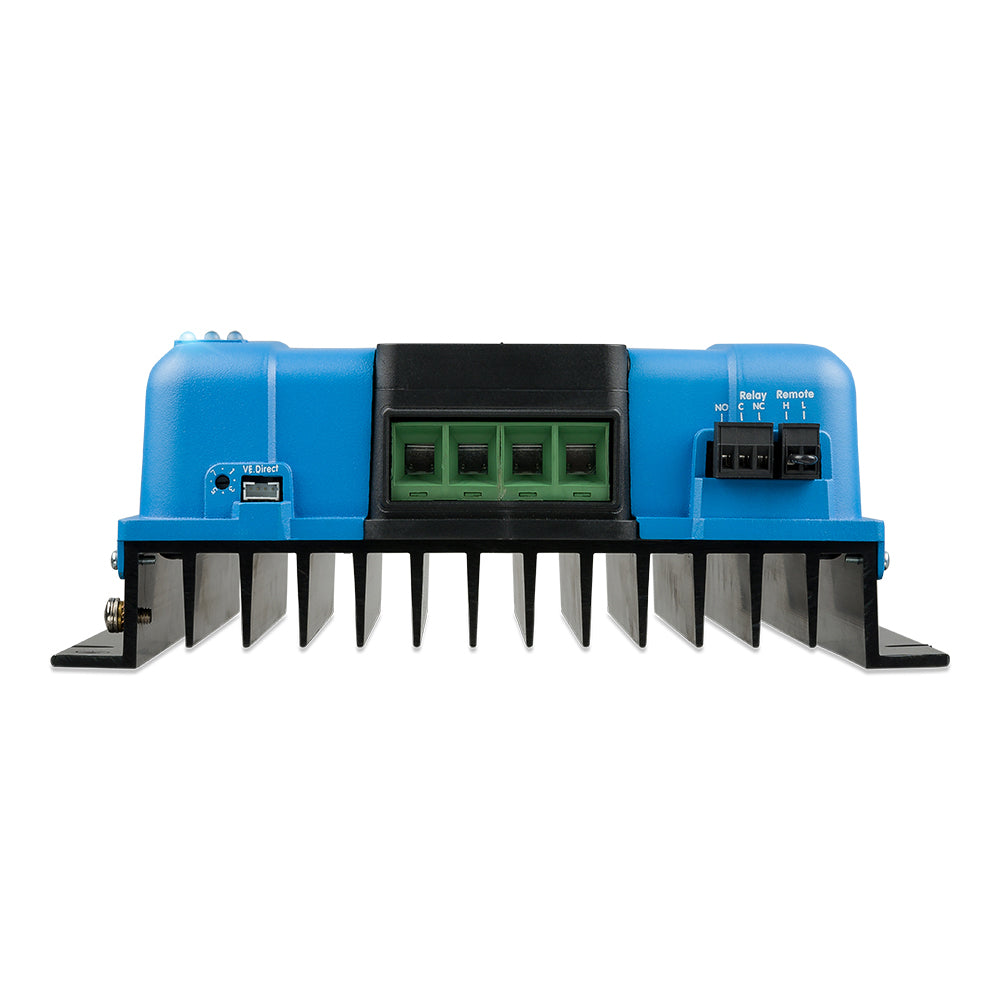

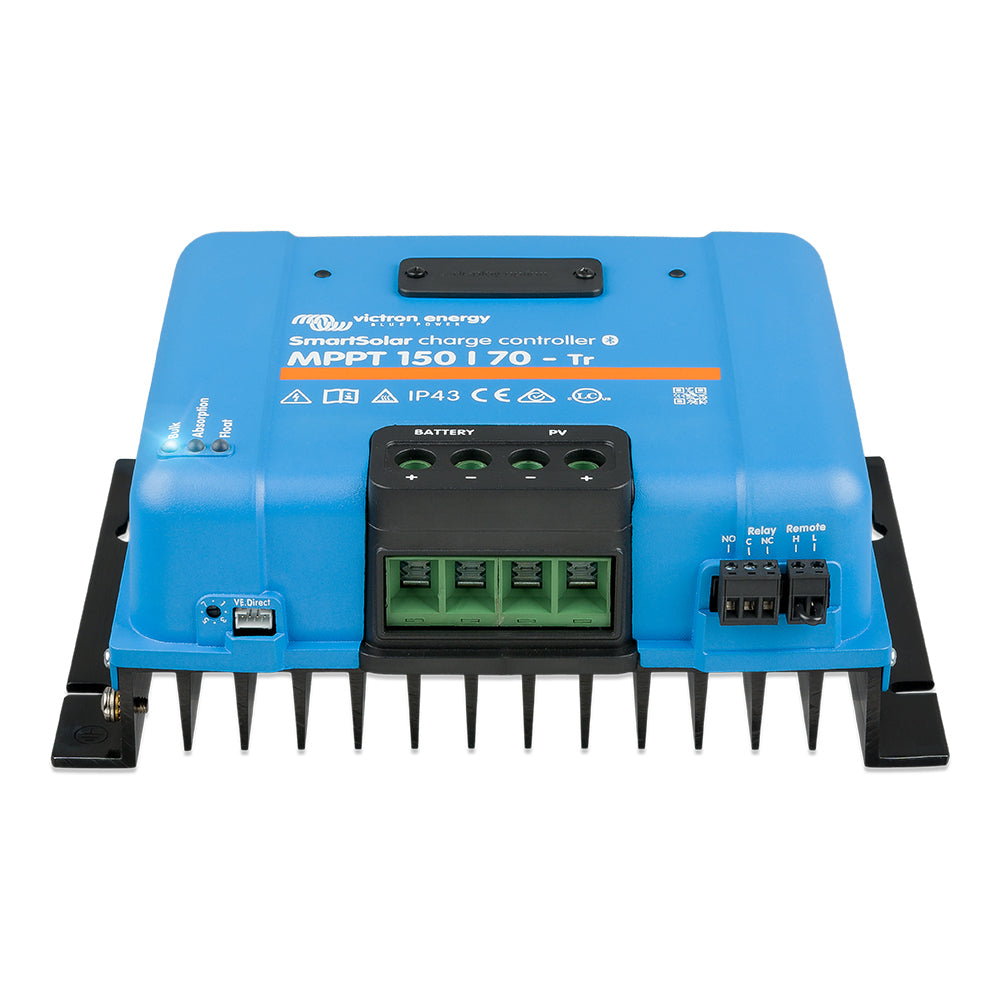

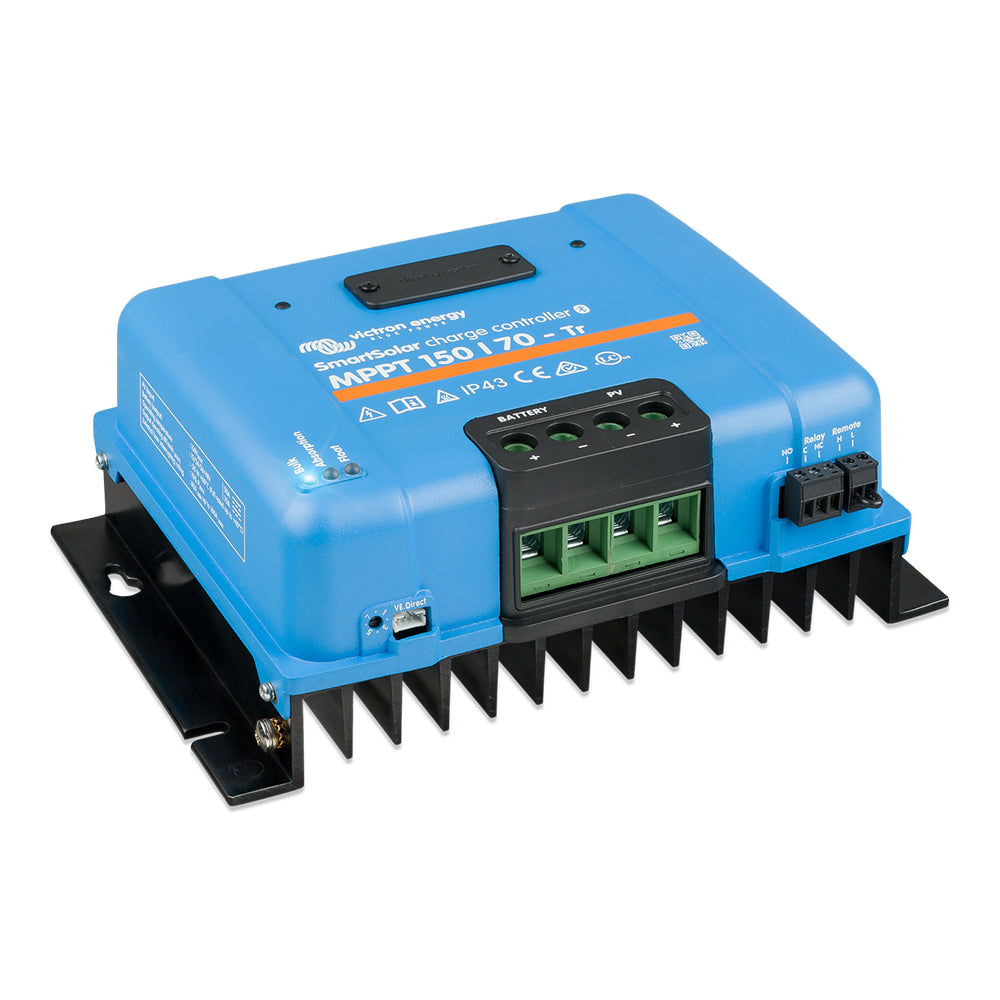

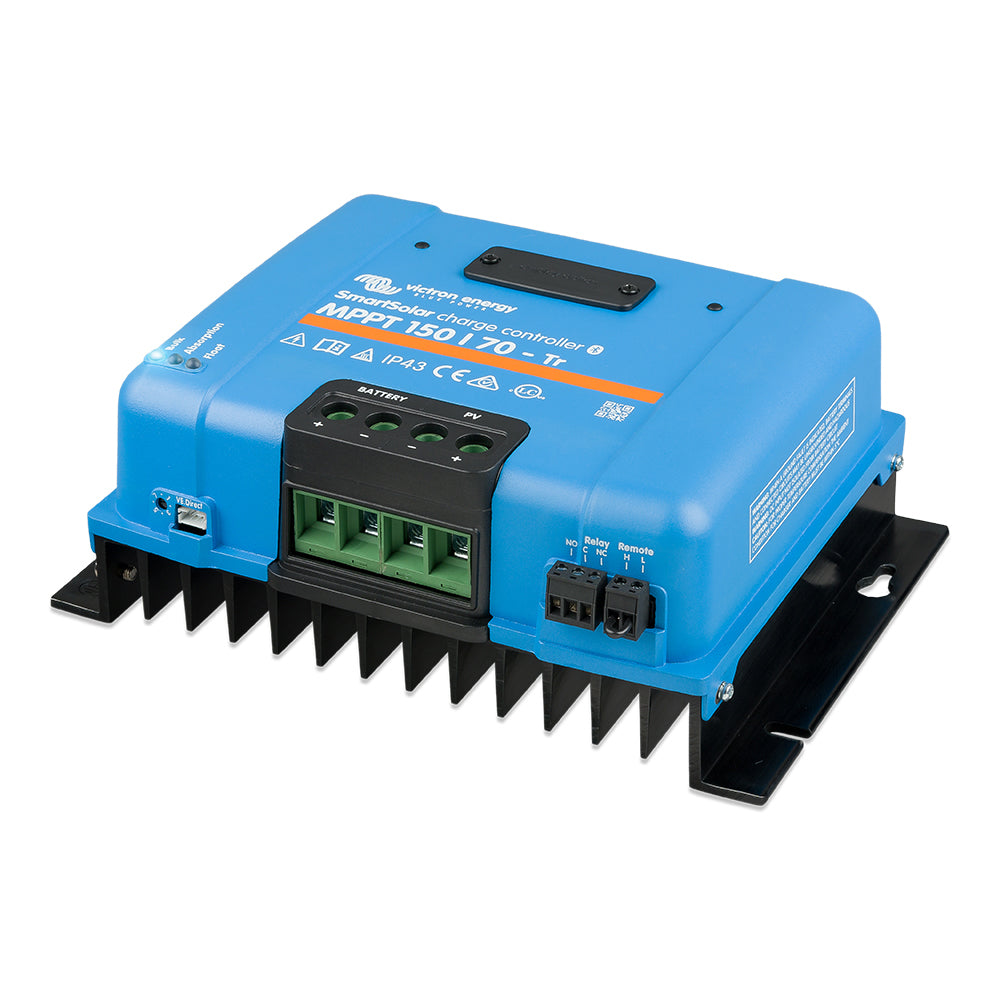

Victron SmartSolar MPPT 150/70 - TR Solar Charge Controller [SCC115070211]

Customer Reviews
Sale price: $402.05 Regular price: $473.00 Save 15%
FREE Standard Shipping $149+* Under $149: rates calculated at checkout 7-day returns* *Continental US; oversize/freight charges may apply.

Key specs & documentation

Brand: Victron EnergyPart #: SCC115070211

Remote on-off To connect for example to a VE.BUS BMS.
Full specifications below

Product details

Description

SmartSolar MPPT 150/70 - TR Solar Charge Controller

Features:

  • Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
  • Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
  • Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
  • Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.
  • Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
  • Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
  • Internal temperature sensor Compensates absorption and float charge voltage for temperature.
  • Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
  • VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
  • Remote on-off To connect for example to a VE.BUS BMS.
  • Programmable relay Can be programmed to trip on an alarm, or other events
Please contact your dealer for any returns, repairs or support issues related to this product.
Quick Guide (pdf)
